Anyone who works with fabric expansion joints knows full well that a poorly designed component results in higher maintenance costs and plant downtime. What few people realize is that avoiding all of this requires meticulous groundwork.

A textile expansion joint cannot be treated like a catalog item, chosen arbitrarily and installed without a specific design. A meticulous process is required, in which every decision is tailored to the actual conditions of the plant. At New Componit, we’ve been working this way for forty years and every expansion joint we produce is the result of exactly that process.

Data come before the material

It all starts with gathering operational information: operating temperature, pressure, movements, flange geometry and the possible presence of chemicals or corrosive agents. This step influences every subsequent decision and we devote a great deal of attention to it.

An expansion joint operating at 400°C on a flue gas duct has completely different requirements than one installed on a fan or on the exhaust of a gas turbine.  From the outside, they might look almost identical, but designing them the same way means ignoring the actual conditions under which they will have to operate. Understanding the context before choosing the material is what determines whether the coupling will last over time or degrade sooner than expected.

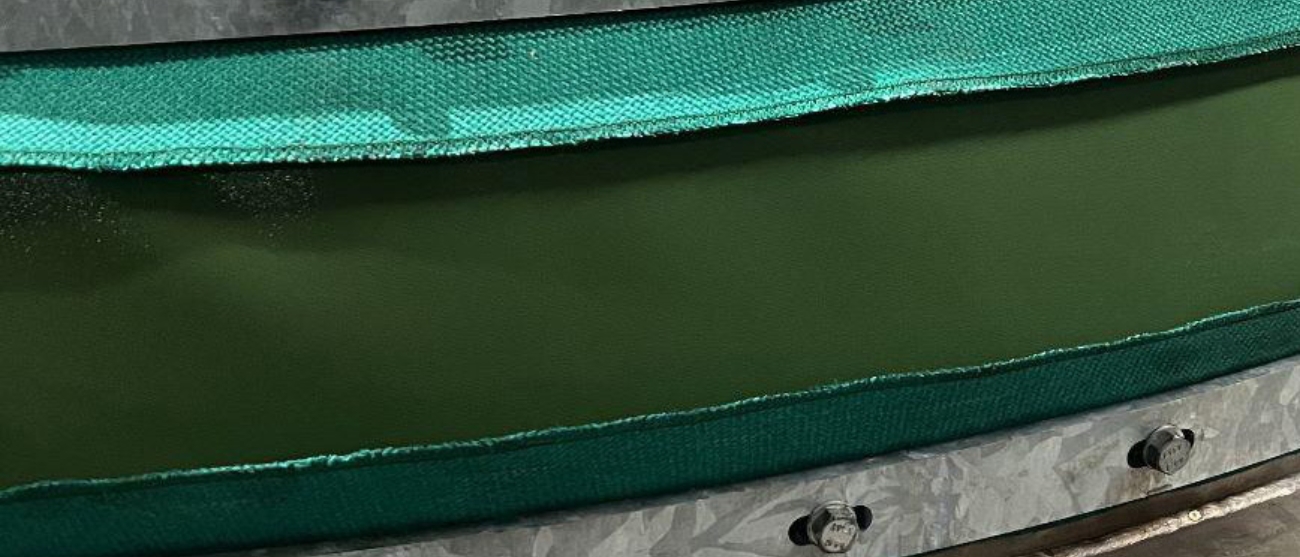

From material selection to layering: this is where the joint’s durability is determined

Once the design has been finalized, the materials are selected : glass fiber, silica, PTFE, metal mesh/foil, and anti-corrosion barriers each address a specific need.

• Glass fiber provides structural strength and resistance to high temperatures.
• Silica is used where temperatures exceed the heat resistance threshold of glass.
• PTFE provides chemical resistance.
• Metal foils/meshes act as a thermal barrier and/or protection against corrosive agents, depending on their position in the sequence

Next comes layering, the most delicate phase of the entire process. The materials are precisely cut and layered in the sequence established during the design phase. Machine precision is necessary here, but not sufficient: recognizing localized stress between layers with different coefficients of expansion—before it becomes a problem under thermal load—requires direct, field-proven experience. It is that subtle difference that only becomes apparent once the expansion joint is put into service.

From the workbench to the plant

Once the layering is complete, the process moves on to sewing and assembly. The expansion joints are reinforced, the flanges are prepared and positioned according to the design. Before delivery, each expansion joint is inspected for dimensions, alignment, and finish quality. A component that is out of specification can compromise the seal in the plant or complicate installation in a way that is difficult to correct once in place.

The product that leaves our production line is a component built to withstand real-world operating conditions, designed to perform reliably even where temperatures are high or the environment is chemically aggressive.

At New Componit, we have been manufacturing textile expansion  joints since 1986. Over forty years of production, we’ve accumulated hands-on experience that no manual can provide: how expansion joints behave under prolonged thermal stress, where they fail prematurely, and why. That knowledge goes into every component we produce, even before we cut the first layer.

If you have a specific application to evaluate or want to understand which configuration is best suited for your system, we’re available for a direct consultation.

Have you ever come across a fabric expansion  joint that has deteriorated earlier than expected, for no apparent reason? In most cases, the answer does not lie in the quality of the expansion joint itself. It lies in what has been placed on top of it.

When a component designed to move and dissipate heat is treated as a fixed pipe, wear and tear accelerates and the problem only becomes apparent months later, during maintenance, by which time the damage has already been done. Understanding why this happens is the first step towards preventing it from happening again.

A fabric expansion joint is not a pipe: treating it as such has a cost

A pipe is static. You cover it, insulate it, fit a metal sheet over it and leave it alone for years. A fabric expansion  joint works in a completely different way: it absorbs the thermal expansion of the duct and dampens vibrations, which means it has to move with every thermal cycle and every change in pressure.

If you encase it in a rigid cover, you are working against its natural function. The fabric continues to move – it cannot do otherwise – but it does so against a constraint that was not intended. Over time, that constraint becomes the main cause of premature deterioration. It is not a question of the quality of the material, but of how it was installed.

When heat cannot escape, it builds up where it shouldn’t

There is a second effect, less visible but just as significant. The fabric expansion joint is designed to release heat to the outside, so when you cover it with a tightly-fitting metal sheet, that heat becomes trapped between the fabric and the covering.

In technical terms, this is known as ‘heat trapping’. Internal temperatures rise above design specifications, the fabric operates under more severe conditions than anticipated and its service life is consequently reduced. From the outside, nothing appears amiss. But the process is already underway, silently, with every cycle.

Two solutions that protect without stopping the movement

If you want to reduce heat loss along the duct without damaging the expansion joints, there are two approaches that that can solve the problem at its root

• The bolster bag is a flexible insulating product that is installed beneath the expansion joint, between the fabric and the supporting structure. It protects against radiant heat without restricting movement. It is removable, making it ideal for those who need to inspect the joint during routine maintenance without having to perform any additional operation.
• A spaced exterior cover is the right choice when protection from impacts or the elements is needed. In this case, the cover is kept raised above the expansion joint, with a ventilation gap that allows heat to dissipate normally. That spacing is not a compromise, but an integral part of proper operation.

Two different solutions for different needs. Both are based on the same principle: the expansion joint must be able to do its job.

Proper insulation means knowing what you’re insulating

Every component of a system has its own requirements and an effective insulation plan starts with this distinction. Fabric expansion joints aren’t a difficult-to-manage exception; they’re simply elements that require a different approach than the standard one. Recognizing this early on means avoiding premature replacements and unplanned downtime that could have been prevented by making a different choice during installation.

If you’re evaluating how to manage textile expansion joints in your system, or if you’ve already noticed signs of wear that you can’t explain, New Componit’s technical team is available for a direct consultation. Let’s analyze the situation together and we’ll recommend the solution best suited to the actual conditions of your system.

Contact us anytime:

There is always a challenge behind every innovation.

For New Componit, that challenge began years ago: to imagine a fabric expansion joint capable of functioning even in the presence of insulation, without losing its mechanical properties and at the same time guaranteeing durability and safety.

An idea that is as simple as it is complex to implement, which has led to the development of a new generation of high-performance textile solutions: Airflex expansion joints.

When insulation becomes a strength

A fabric expansion  joint is not just a simple component. It is a key element within a plant, because it must absorb vibrations, compensate for movements and withstand often extreme temperature and pressure conditions.

With Airflex, New Componit has opened a new phase in the evolution of industrial fabric expansion joints.

The main innovation concerns the possibility of insulating the expansion joint externally, allowing it to operate at temperatures up to 800°C without compromising its efficiency. This is an important technical achievement, because traditionally insulation tended to reduce the joint’s ability to perform its function. With Airflex, however, insulation becomes an ally, not an obstacle.

But Airflex is not just synonymous with high temperatures.

The line also includes fabric expansion joints dedicated to ventilation, designed to work up to 150°C, with advanced acoustic characteristics that reduce sound vibrations and improve workplace comfort.

What makes Airflex a strategic choice

Airflex fabric expansion joints are not only designed to withstand stress: they are manufactured to offer performance and durability never before seen in other compensators.

Their main features include:

• Structural flexibility, making them ideal for absorbing vibrations and movements without mechanical stress.
• External insulation option, a key element in reducing heat loss and optimizing the energy efficiency of systems.
• Resistance to extreme temperatures, up to 800°C in models designed for high temperatures.
• Customized solutions, thanks to a tailor-made design process that starts with a study of the customer’s needs.

Not just expansion joints: a complete service

New Componit’s real strength lies not only in its products, but also in the integrated service system that accompanies every supply.

Today’s large industrial plants require partners who are capable not only of producing components, but also of following the entire product life cycle: from engineering to assembly, from maintenance to repair.

For this reason New Componit has created a team of specialists, ready to intervene anywhere in the world, offering a complete package that includes:

• Supervision and assistance with assembly,
• Rapid repair interventions to reduce costly plant downtime,
• Preventive maintenance services,
• Thermographic reports for monitoring operating conditions,
• Complementary carpentry and welding activities.

In addition  the Expansion Control System service takes customization to the next level, with:

• Ad hoc design, thermal analysis and test chamber simulations;
• 3D or 2D engineering for total project control;
• Production with premium materials and advanced technologies.

Airflex protects your plant from unexpected downtime

One of the highest costs for an industrial plant is not the price of the component, but the downtime caused by a failure.

Airflex fabric expansion joints, combined with New Componit’s maintenance and repair service, drastically reduce these risks, ensuring production continuity and real savings.

In an increasingly fast-paced and competitive industrial world, relying on standard solutions is no longer enough.

Airflex was created for those who want to guarantee maximum efficiency of their plants, reduce heat loss and have a technical partner always at their side.

Would you like to know how Airflex can improve the efficiency and safety of your plant?

Contact us for a free technical consultation.

‘Tell me the operating conditions of your system and I will tell you which expansion joint to
choose’.
